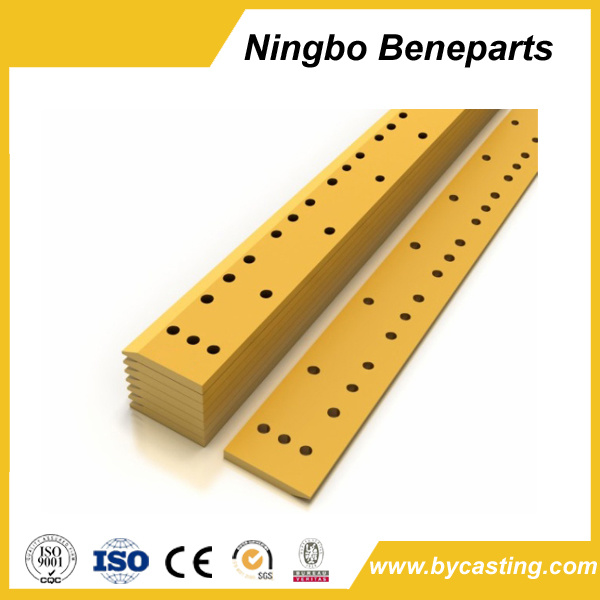

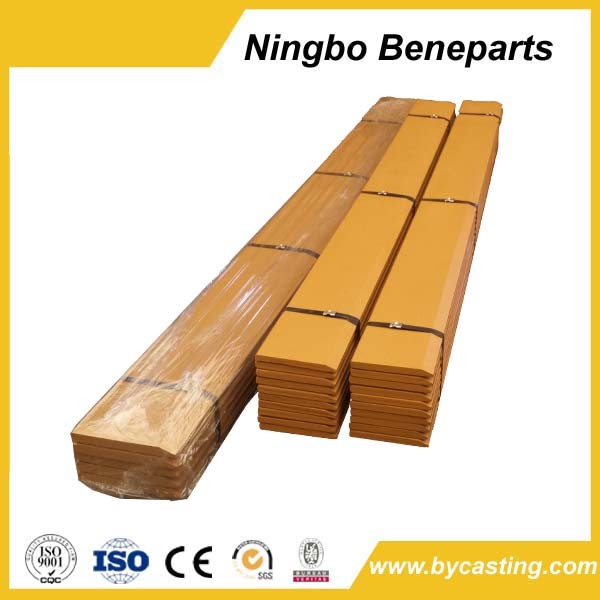

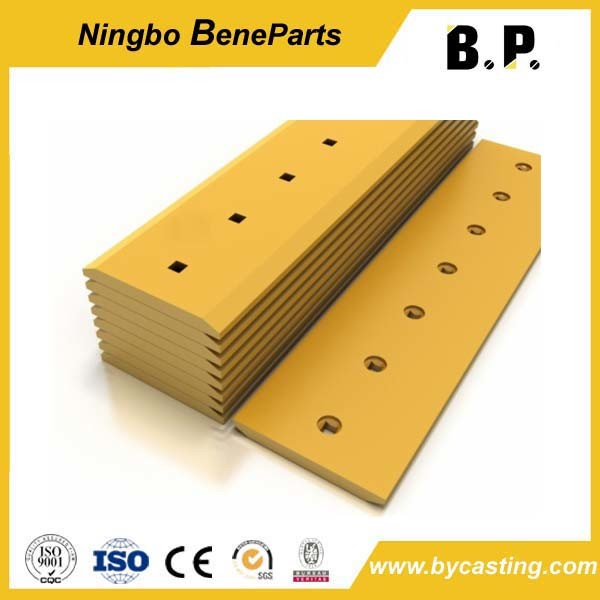

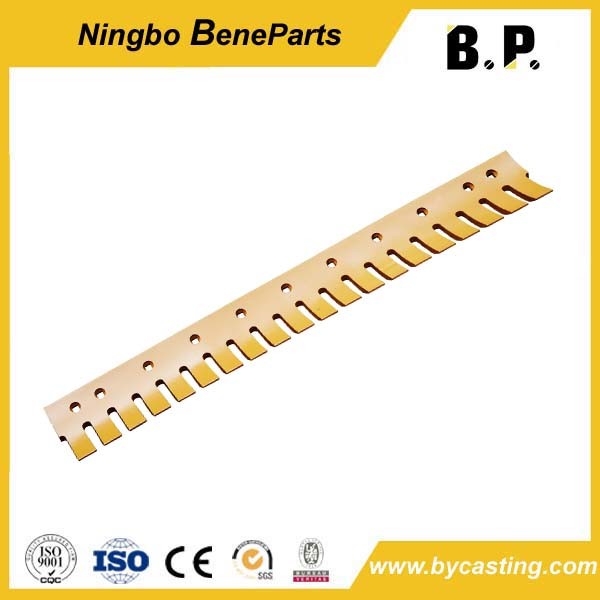

Motorgrader Flat 109-3116 Cutting Edge

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
1. Description
Part No.: 1093116
Description: Double bevel cutting edge
Applied Machine: Motor Grader
Model.:
Material: Carbon steel, Boron steel (30MnB)
Hardness: HB300-350, HB400-450
Measurement:
Weight: 133.8Kg
Width: 330mm
Thickness: 45mm
Length: 1217mm
Bolt: 3/4" plow bolt
Bolt Qty.: 9

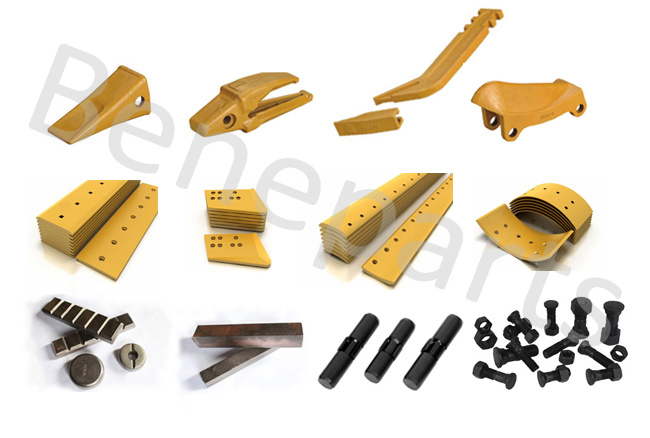

2. Our products range:
Motorgrader Flat 109-3116 Cutting Edge

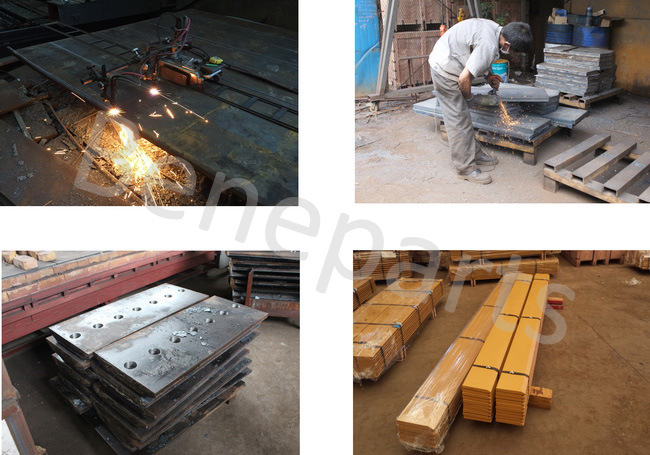

3. Production line:
Motorgrader Flat 109-3116 Cutting Edge

4. Popular items blow for reference:
Part Number Measurement (mm) Description Brand Weight(Kgs)
85999108 WELDED BASE 2248*152*19 8*5/8" DBF Cutting Edge 46.3
T224178 2378*203*19mm 9*3/4" DBF Cutting Edge 66.45
109-9230 1447.8*406*41mm 3*1.25" DBF cutting edge 181.89
993-99391 2235mmX203mmX19mm 8*3/4" DBF Cutting Edge 62.4
993-99189 2349mmX200mmX20mm 8*3/4" DBF Cutting Edge 67.2
1093116 1217mmX330mmX45mm 3/4"X9 DBF Cutting Edge 133.8
12F-70-11640 1198mmX152mmX16mm 5/8"X8 DBF Cutting Edge 20.4
135-9668 1066.8mmX406mmX51mm 7*1-3/8" DBF Cutting edge 159.21
174-7966 1588mmX203mmX16mm 0.688'X8 Wider Bolt on (Plow Bolts) 35.83
T120980 1997x203x19mm 3/4'X 7holes DBF cuttting edge 55.3
85999108 2248*203*19 8*5/8" DBF Cutting Edge 63
T120979 1793.875x203.2x19.05mm 3/4'X 7holes DBF cuttting edge 49.6
T84194 2346.4X203.2X19.05mm 5/8'X 8 holes DBF Edge center 65
9K1619 3270mmX305mmX45mm 1-1/10"X8 DBF Cutting Edge 44.9
8K7524 2248mmX245mmX25mm 1-1/10"X8 DBF Cutting Edge 99.1
5J6885 2353mmX203mmX16mm 5/8"X15 DBF Cutting Edge 59
5J6873 2537mmX203mmX16mm 5/8"X8 DBF Cutting Edge 64
4T3447 1213mmX254mmX35mm 1"X8 DBF Cutting Edge 84
6W2984 2408mmX245mmX25mm DBF Cutting Edge 112.5
3G9512 498mmX170mmX35mm 1"X3 DBF End Edge 22
424-815-1211 1860x330x32mm 7/8"X10 DBF Cutting Edge 148.9
424-815-A120 1860x330x32mm 7/8"X10 DBF Cutting Edge 148.9
1386440 1219mmX406mmX45mm 1"*9 DBF Cutting Edge 163.5
1U0761HD 556mmX265mmX40mm DBF Cutting Edge 42.5
3G6395HD 510mmX200mmX40mm DBF Cutting Edge 40mm 30
135-9394 16mmX165mmX1588mm 0.688'X8 DBF Cutting Edge 28.62
12F-22-71510 1430mmX203mmX19mm 3/4"X10 DBF Cutting Edge 39.3
14X-71-11310 1383mmX203mmX19mm 3/4"X9 DBF Cutting Edge 40
4T3894 964mmX330mmX40mm 1-1/4"X8 DBF Cutting Edge 92.9
9J5901 1580mmX406mmX30mm 1"X20 DBF Cutting Edge 139.5
5J6814 392mmX203mmX16mm 3/4"X8 DBF Cutting Edge 8.6
5J6915 440mmX254mmX19mm 3/4"X5 DBF Cutting Edge 15.2
7J3796 440mmX330mmX25mm 3/4"X5 DBF Cutting Edge 26.5
7J3795 440mmX330mmX25mm 3/4"X5 DBF Cutting Edge 26.5
5J6913 511mmX254mmX19mm 3/4"X6 DBF Cutting Edge 17.5
7J3792 511mmX330mmX25mm 3/4"X6 DBF Cutting Edge 30.7
7J3791 511mmX330mmX25mm 3/4"X6 DBF Cutting Edge 30.7
7J4689 560mmX330mmX25mm 3/4"X8 DBF Cutting Edge 33.4
5J6847 595mmX254mmX19mm 7/8"X4 DBF Cutting Edge 20.6
7J3952 614mmX330mmX25mm 7/8"X7 DBF Cutting Edge 36.6
5J6841 621mmX254mmX19mm 7/8"X4 DBF Cutting Edge 21.5
140-6763 723mmX406mmX30mm 1"X10 DBF Cutting Edge 63.6
5J8062 723mmX406mmX35mm 1"X10 DBF Cutting Edge 74.6
7J3193 748mmX330mmX25mm 1"X5 DBF Cutting Edge 45.2
140-6778 748mmX330mmX30mm 1"X5 DBF Cutting Edge 54.5
144-1323 748mmX406mmX30mm 1"X10 DBF Cutting Edge 66
4T6311 753mmX406mmX35mm 1"X10 DBF Cutting Edge 77.9
140-6765 858mmX406mmX30mm 1"X12 DBF Cutting Edge 75.5
4T6318 858mmX406mmX35mm 1"X12 DBF Cutting Edge 88.5
7J3025 900mmX330mmX25mm 1"X6 DBF Cutting Edge 54.3
4T9558 900mmX330mmX40mm 1"X6 DBF Cutting Edge 88.9
4J9135 900mmX406mmX35mm 1"X12 DBF Cutting Edge 92
4T6374 900mmX406mmX40mm 1"X12 DBF Cutting Edge 107.4
4T3892 964mmX330mmX35mm 1-1/4"X8 DBF Cutting Edge 80.6
5J6813 1020mmX203mmX16mm 3/4"X20 DBF Cutting Edge 22.3
5J6946 1020mmX254mmX19mm 3/4"X20 DBF Cutting Edge 34.1
4T9554 1062mmX330mmX40mm 1"X7 DBF Cutting Edge 105
5J6843 1071mmX254mmX19mm 7/8"X7 DBF Cutting Edge 37.1
7J3697 1071mmX330mmX25mm 7/8"X14 DBF Cutting Edge 63.5
7J4690 1100mmX330mmX25mm 3/4"X14 DBF Cutting Edge 65.9
7J3564 1224mmX330mmX25mm 1"X8 DBF Cutting Edge 73.8
5J6819 1224mmX406mmX25mm 1"X16 DBF Cutting Edge 89.1
5J6822 1224mmX406mmX30mm 1"X16 DBF Cutting Edge 108
5J6916 1245mmX254mmX19mm 3/4"X14 DBF Cutting Edge 42.7
5J6844 1376mmX254mmX19mm 7/8"X9 DBF Cutting Edge 47.7
7J3688 1376mmX330mmX25mm 7/8"X18 DBF Cutting Edge 81.6
4T6375 1376mmX406mmX40mm 1"X18 DBF Cutting Edge 164.2
7J3678 1376mmX330mmX25mm 1"X9 DBF Cutting Edge 83
5J6817 1376mmX406mmX25mm 1"X18 DBF Cutting Edge 100.2
5J6828 1376mmX406mmX30mm 1"X18 DBF Cutting Edge 121.4
4J8228 1376mmX406mmX35mm 1"X18 DBF Cutting Edge 142.4
5J6914 1405mmX254mmX19mm 3/4"X16 DBF Cutting Edge 48.2
7J3790 1405mmX330mmX25mm 3/4"X16 DBF Cutting Edge 84.4
5J6845 1427mmX406mmX25mm 1"X18 DBF Cutting Edge 104
140-6779 1427mmX406mmX30mm 1"X18 DBF Cutting Edge 126.1
7J3661 1508mmX330mmX25mm 7/8"X17 DBF Cutting Edge 89.9
7J3558 1529mmX330mmX25mm 1"X10 DBF Cutting Edge 91.3
5J6818 1529mmX406mmX25mm 1"X20 DBF Cutting Edge 111.3
5J6827 1529mmX406mmX30mm 1"X20 DBF Cutting Edge 134.8
4T6309 1529mmX406mmX35mm 1"X20 DBF Cutting Edge 158.2
4T6372 1529mmX406mmX40mm 1"X20 DBF Cutting Edge 182.5
4T6371 1580mmX406mmX40mm 1"X20 DBF Cutting Edge 188.8
4T6310 1580mmX406mmX35mm 1"X20 DBF Cutting Edge 163.7
9J0565 1580mmX406mmX25mm 1"X20 DBF Cutting Edge 115.1
4T6319 1667mmX406mmX35mm 1"X22 DBF Cutting Edge 172.4
140-6764 1667mmX406mmX30mm 1"X22 DBF Cutting Edge 147
5J6821 1682mmX406mmX30mm 1"X22 DBF Cutting Edge 148.4
4T8795 1730mmX406mmX35mm 1-1/4"X22 DBF Cutting Edge 173.2
4T8802 1730mmX406mmX40mm 1-1/4"X22 DBF Cutting Edge 199.5

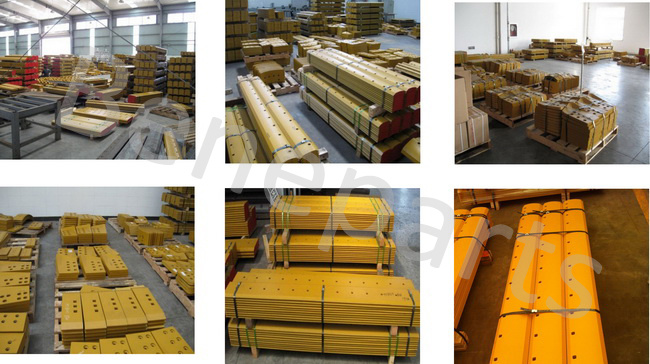

5. Our warehouse:
Motorgrader Flat 109-3116 Cutting Edge

6.Company information

Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
