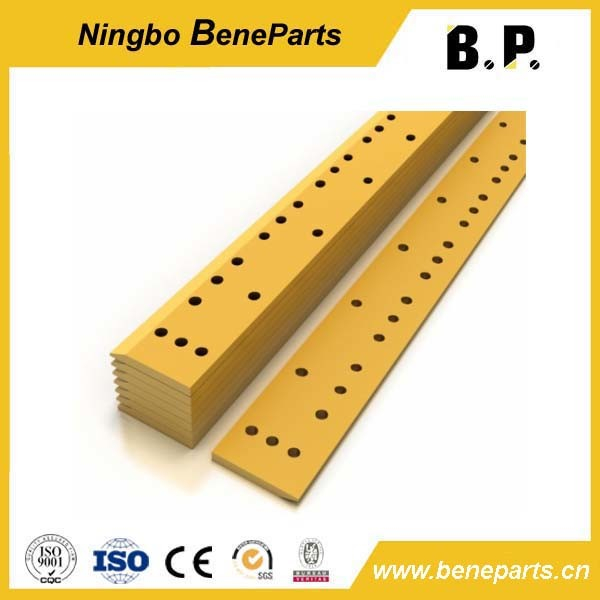

Loader Parts 425-70-1160 Single Bevel Flat Edge

Loader Parts 425-70-1160 Single Bevel Flat Edge

Quantity:
Availability:





Inquire Add to Basket

Product Description

1. Description

Part No.:	425-70-1160
Description:	Single bevel cutting edge
Applied Machine:	Loader
Model.:
Material:	Carbon steel, Boron steel (30MnB)
Hardness:	HB300-350, HB400-450

Measurement:
Weight:	321.9Kg
Width:	300mm
Thickness:	45mm
Length:	3312mm
Bolt:	Φ36 plow bolt
Bolt Qty.:	30

2. Our products range

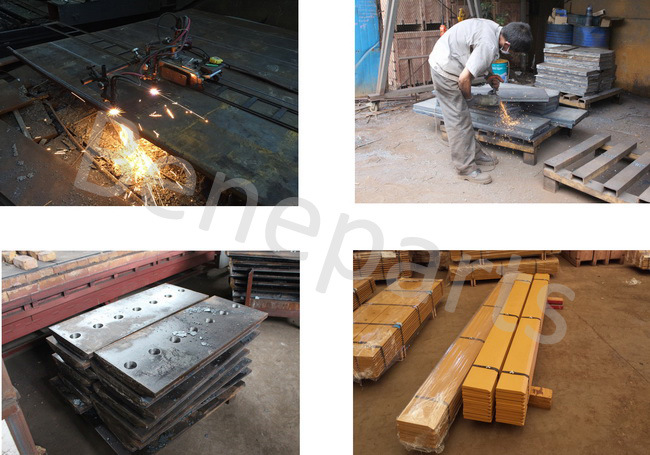

3. Production line

4. Popular items

Part Number	Measurement (mm)	Description	Brand	Weight(Kgs)
425-70-1221	3032mmX300mmX35mm Φ36X18	SBF Cutting Edge		233
425-70-1122	2920mmX268mmX30mm Φ28.5X24	SBF Cutting Edge		168
425-70-1160	3312mmX300mmX45mm Φ36X30	SBF Cutting Edge		321.9
7V4188	3315mmX300mmX40mm Φ36X18	SBF Cutting Edge		293
9V6574	3314.2mmX304.8mmX45mm Φ35X30	SBF Cutting Edge		332
6W2986	2413mmX245mmX25mm Φ27X30	SBF Cutting Edge		112
5V4661	2407.4mmX245mmX25mm Φ27X16	SBF Cutting Edge		115
5V7423	2439mmX245mmX25mm Φ27X18	SBF Cutting Edge		111
5V7276	2614mmX245mmX25mm Φ27X18	SBF Cutting Edge		125
141-4847	2920.2mmX282mmX30mm Φ27X30	SBF Cutting Edge		176
9V6529	3030mmX282mmX30mm Φ35X30	SBF Cutting Edge		190
5G3085	2150.4mmX190.5mmX19mm Φ20.6X14	SBF Cutting Edge		60
5G2809	2079.6mmX190.5mmX19mm Φ20.6X14	SBF Cutting Edge		58
5G8342	2364.7mmX190.5mmX19mm Φ20.6X28	SBF Cutting Edge		64
9V6575	3041.7mmX304.8mmX40mm Φ35X30	SBF Cutting Edge		268.2
6W2989	2840mmX282mmX30mm Φ36X12	SBF Cutting Edge		178
6I5248	1250mmX300mmX40mm	SBF Cutting Edge		112
6I5234	1350mmX300mmX40mm	SBF Cutting Edge		121
3G6364	1300mmX300mmX35mm	SBF Cutting Edge		102
105-2345	2681mmX245mmX25mm Φ27X28	SBF Cutting Edge		116.2
6W2985	2639mmX245mmX25mm Φ28X28	SBF Cutting Edge		113.5
6W2990	2856mmX282mmX30mm Φ36X30	SBF Cutting Edge		169.1
5V4696	2736mmX282mmX30mm Φ28X18	SBF Cutting Edge		166.2
9R4672	2262mmX150mmX19mm Φ17.5X16	SBF Cutting Edge		47

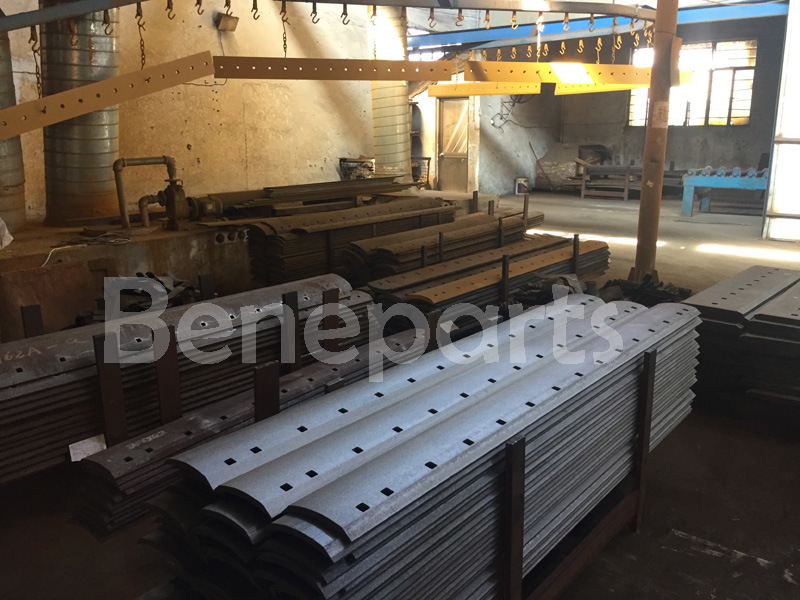

5. Our warehouse

6.Company information
Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
