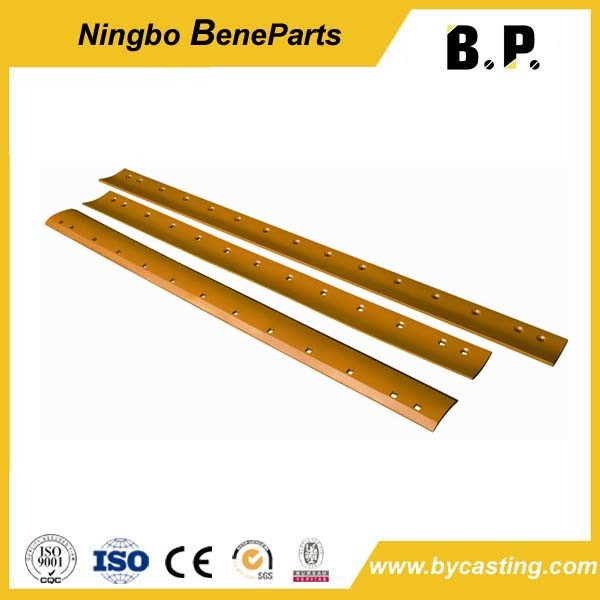

Ground Engaging Tools Grader Blade 135-6738

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
1. Description
Part No.: 135-6738
Description: Curved grader blade
Applied Machine: Motor grader
Material: High carbon steel, Heat treated boron steel (30MnB)
Measurement:
Weight: 23Kg
Width: 203mm
Thickness: 13mm
Length: 1219mm
Bolt: 3/4'' plow bolt
Bolt Qty.: 9

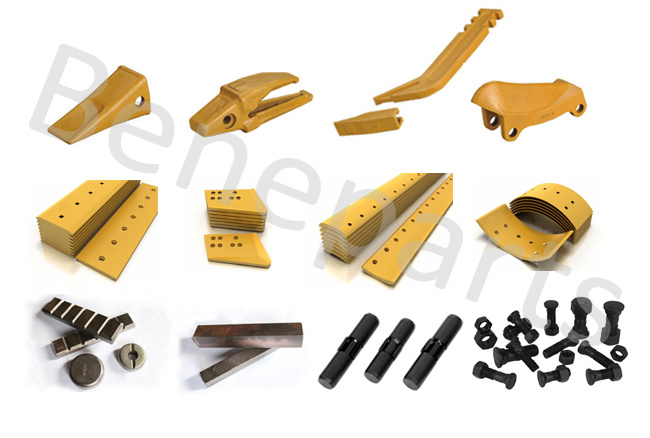

2. Our products range:
Ground Engaging Tools Grader Blade 135-6738

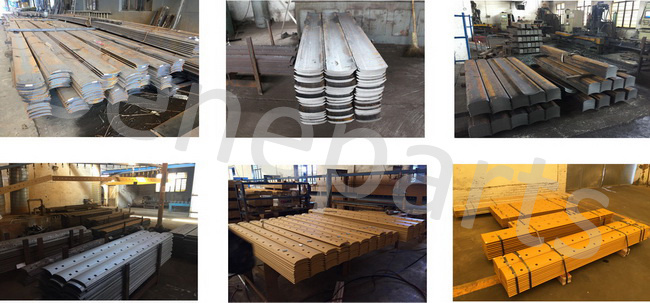

3. Production line:
Ground Engaging Tools Grader Blade 135-6738

4. Popular items blow for reference:
Part Number Measurement (mm) Description Weight(Kgs)
232-70-12142 1828mmX152mmX13mm 5/8"X8 DBC Grader Blades 24
4T3512 1219mmX203mmX25mm 3/4"X9 DBC Grader Blades 45
7T1627 2438mmX203mmX19mm 3/4"X17 DBC Grader Blades 67
7T1625 2133mmX203mmX19mm 3/4"X15 DBC Grader Blades 59
7T1638 1828mmX203mmX19mm 3/4"X13 DBC Grader Blades 50
9W2341 1524mmX203mmX19mm 3/4"X11 DBC Grader Blades 42
9W2339 1219mmX203mmX19mm 3/4"X9 DBC Grader Blades 33.5
7T1630 2438mmX203mmX19mm 5/8"X17 DBC Grader Blades 67
7T1623 2133mmX203mmX19mm 5/8"X15 DBC Grader Blades 59
7T1634 1828mmX203mmX19mm 5/8"X13 DBC Grader Blades 50
9W2340 1524mmX203mmX19mm 5/8"X11 DBC Grader Blades 42
9W2338 1219mmX203mmX19mm 5/8"X9 DBC Grader Blades 33.5
7T1628 2438mmX203mmX16mm 3/4"X17 DBC Grader Blades 56
7T1624 2133mmX203mmX16mm 3/4"X15 DBC Grader Blades 49
7T1639 1828mmX203mmX16mm 3/4"X13 DBC Grader Blades 42
9W2329 1219mmX203mmX16mm 3/4"X9 DBC Grader Blades 28
7T1631 2438mmX203mmX16mm 5/8"X17 DBC Grader Blades 56
7T1643 2133mmX203mmX16mm 5/8"X15 DBC Grader Blades 49
7T1636 1828mmX203mmX16mm 5/8"X13 DBC Grader Blades 42
7T1641 1524mmX203mmX16mm 5/8"X11 DBC Grader Blades 35
9W2328 1219mmX203mmX16mm 5/8"X9 DBC Grader Blades 28
3G1628 2438mmX203mmX13mm 3/4"X17 DBC Grader Blades 45.5
3G1627 2133mmX203mmX13mm 3/4"X15 DBC Grader Blades 40
3G1626 1828mmX203mmX13mm 3/4"X13 DBC Grader Blades 34
134-1779 1524mmX203mmX13mm 3/4"X11 DBC Grader Blades 28
135-6738 1219mmX203mmX13mm 3/4"X9 DBC Grader Blades 23
8J8980 2438mmX203mmX13mm 5/8"X17 DBC Grader Blades 45.5
8D2789 2133mmX203mmX13mm 5/8"X15 DBC Grader Blades 40
8D2788 1828mmX203mmX13mm 5/8"X13 DBC Grader Blades 34
9J3863 1524mmX203mmX13mm 5/8"X11 DBC Grader Blades 28
3G7965 1219mmX203mmX13mm 5/8"X9 DBC Grader Blades 23
9W2335 2133mmX152mmX19mm 3/4"X15 DBC Grader Blades 42
7T1644 2133mmX152mmX19mm 5/8"X15 DBC Grader Blades 42
7T1635 1828mmX152mmX19mm 5/8"X13 DBC Grader Blades 35.5
7T1642 1524mmX152mmX19mm 5/8"X11 DBC Grader Blades 30
7T1629 2438mmX152mmX16mm 3/4"X17 DBC Grader Blades 39
7T1626 2133mmX152mmX16mm 3/4"X15 DBC Grader Blades 34
7T1637 1828mmX152mmX16mm 3/4"X13 DBC Grader Blades 29
7T1632 2438mmX152mmX16mm 5/8"X17 DBC Grader Blades 39
7T1645 2133mmX152mmX16mm 5/8"X15 DBC Grader Blades 34
5B5562 2133mmX152mmX16mm 5/8"X9 DBC Grader Blades 34
7T1633 1828mmX152mmX16mm 5/8"X13 DBC Grader Blades 29
7T1640 1524mmX152mmX16mm 5/8"X11 DBC Grader Blades 25
9W2302 2438mmX152mmX13mm 3/4"X17 DBC Grader Blades 31.5
9W2300 2133mmX152mmX13mm 3/4"X15 DBC Grader Blades 28
9W2298 1828mmX152mmX13mm 3/4"X13 DBC Grader Blades 24
9W2301 2438mmX152mmX13mm 5/8"X9 DBC Grader Blades 31.5
9W2299 2133mmX152mmX13mm 5/8"X15 DBC Grader Blades 28
9W2297 1828mmX152mmX13mm 5/8"X13 DBC Grader Blades 24
9W2295 1524mmX152mmX13mm 5/8"X11 DBC Grader Blades 20
9W2293 1219mmX152mmX13mm 5/8"X9 DBC Grader Blades 16
235-70-12140 2438mmX203mmX19mm 3/4"X17 DBC Grader Blades 67
234-70-12670 2133mmX203mmX19mm 5/8"X15 DBC Grader Blades 59
232-70-52850 1828mmX203mmX19mm 5/8"X13 DBC Grader Blades 50
234-70-12710 2133mmX203mmX16mm 3/4"X15 DBC Grader Blades 49
234-70-12550 2133mmX203mmX16mm 3/4"X9 DBC Grader Blades 49
234-70-12193 2133mmX152mmX16mm 5/8"X15 DBC Grader Blades 34
232-70-12143 1828mmX152mmX16mm 5/8"X13 DBC Grader Blades 29
238-70-12220 1524mmX152mmX16mm 5/8"X11 DBC Grader Blades 25
234-70-12192 2133mmX152mmX13mm 5/8"X9 DBC Grader Blades 28
232-70-12140 1828mmX152mmX13mm 5/8"X8 DBC Grader Blades 24
233-70-12141 1524mmX152mmX13mm 5/8"X7 DBC Grader Blades 20
4T2236 2438mmX203mmX25mm 3/4"X17 DBC Grader Blades 90
4T2233 2133mmX203mmX25mm 3/4"X15 DBC Grader Blades 79
4T2231 1828mmX203mmX25mm 3/4"X13 DBC Grader Blades 68
4T3511 1524mmX203mmX25mm 3/4"X11 DBC Grader Blades 56.5
109-3150 1219mmX203mmX25mm 3/4"X9 DBC Grader Blades 45
4T2237 2438mmX203mmX25mm 5/8"X17 DBC Grader Blades 90
4T2242 2133mmX203mmX25mm 5/8"X15 DBC Grader Blades 79
4T2244 1828mmX203mmX25mm 5/8"X13 DBC Grader Blades 68
4T2240 1524mmX203mmX25mm 5/8"X11 DBC Grader Blades 56.5
7D1949 2438mmX203mmX19mm 3/4"X17 DBC Grader Blades 67
7D1577 2133mmX203mmX19mm 3/4"X15 DBC Grader Blades 59
7D1576 1828mmX203mmX19mm 3/4"X13 DBC Grader Blades 50
4Z8131 1524mmX203mmX19mm 3/4"X11 DBC Grader Blades 42
109-3124 1219mmX203mmX19mm 3/4"X9 DBC Grader Blades 33.5
5D9732 2438mmX203mmX19mm 5/8"X17 DBC Grader Blades 67
5D9559 2133mmX203mmX19mm 5/8"X15 DBC Grader Blades 59
5D9558 1828mmX203mmX19mm 5/8"X13 DBC Grader Blades 50
9W6252 1524mmX203mmX19mm 5/8"X11 DBC Grader Blades 42
132-1087 1219mmX203mmX19mm 5/8"X9 DBC Grader Blades 33.5
8J9821 2438mmX203mmX16mm 3/4"X17 DBC Grader Blades 56
7D1158 2133mmX203mmX16mm 3/4"X15 DBC Grader Blades 49
9J7701 1828mmX203mmX16mm 3/4"X13 DBC Grader Blades 42
9W2330 1524mmX203mmX16mm 3/4"X11 DBC Grader Blades 35
134-1773 1219mmX203mmX16mm 3/4"X9 DBC Grader Blades 28
5D9731 2438mmX203mmX16mm 5/8"X17 DBC Grader Blades 56
5D9561 2133mmX203mmX16mm 5/8"X15 DBC Grader Blades 49
5D9562 1828mmX203mmX16mm 5/8"X13 DBC Grader Blades 42
7D4509 1524mmX203mmX16mm 5/8"X11 DBC Grader Blades 35
132-1088 1219mmX203mmX16mm 5/8"X9 DBC Grader Blades 28
9W2318 2438mmX203mmX13mm 3/4"X17 DBC Grader Blades 45.5
9W2316 2133mmX203mmX13mm 3/4"X15 DBC Grader Blades 40
9W2314 1828mmX203mmX13mm 3/4"X13 DBC Grader Blades 34
9W2312 1524mmX203mmX13mm 3/4"X11 DBC Grader Blades 28
9W2310 1219mmX203mmX13mm 3/4"X9 DBC Grader Blades 23
9W2317 2438mmX203mmX13mm 5/8"X17 DBC Grader Blades 45.5
9W2315 2133mmX203mmX13mm 5/8"X15 DBC Grader Blades 40
9W2313 1828mmX203mmX13mm 5/8"X13 DBC Grader Blades 34
9W2311 1524mmX203mmX13mm 5/8"X11 DBC Grader Blades 28
9W2309 1219mmX203mmX13mm 5/8"X9 DBC Grader Blades 23
4Z8785 2133mmX152mmX19mm 3/4"X15 DBC Grader Blades 42
9W2334 1828mmX152mmX19mm 3/4"X13 DBC Grader Blades 35.5
5D9557 2133mmX152mmX19mm 5/8"X15 DBC Grader Blades 42
5D9556 1828mmX152mmX19mm 5/8"X13 DBC Grader Blades 35.5
3G7966 1524mmX152mmX19mm 5/8"X11 DBC Grader Blades 30
9J3655 2438mmX152mmX16mm 3/4"X17 DBC Grader Blades 39
9J3658 2133mmX152mmX16mm 3/4"X15 DBC Grader Blades 34
9J3657 1828mmX152mmX16mm 3/4"X13 DBC Grader Blades 29
9W2327 1524mmX152mmX16mm 3/4"X11 DBC Grader Blades 25
9W2326 1219mmX152mmX16mm 3/4"X9 DBC Grader Blades 20
8J4043 2438mmX152mmX16mm 5/8"X17 DBC Grader Blades 39
5D9554 2133mmX152mmX16mm 5/8"X15 DBC Grader Blades 34
5B5561 2133mmX152mmX16mm 5/8"X9 DBC Grader Blades 34
5D9553 1828mmX152mmX16mm 5/8"X13 DBC Grader Blades 29
5B5564 1828mmX152mmX16mm 5/8"X8 DBC Grader Blades 29
7D4508 1524mmX152mmX16mm 5/8"X11 DBC Grader Blades 25
5B5567 1524mmX152mmX16mm 5/8"X7 DBC Grader Blades 25
9W2325 1219mmX152mmX16mm 5/8"X9 DBC Grader Blades 20

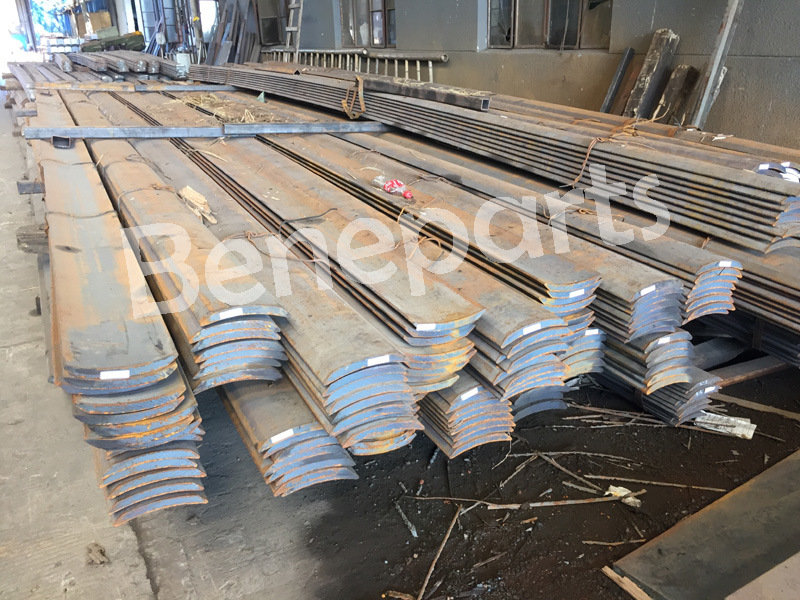

5. Our warehouse:
Ground Engaging Tools Grader Blade 135-6738

6.Company information
Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
