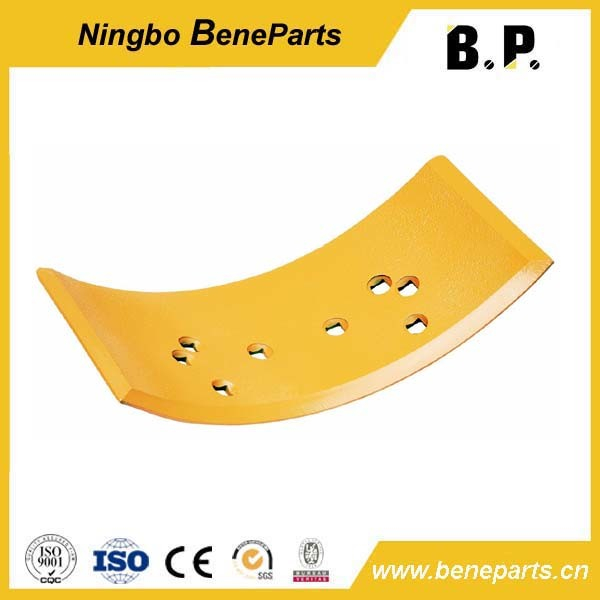

Grader 6y2801 for Construction Side Blade

Grader 6y2801 for Construction Side Blade

Quantity:
Availability:





Inquire Add to Basket

Shape:
Curved
Transport Package:
According to Customer Requirements
Specification:
462.4mmX152mmX16mm 3/4"X5

Product Description

1. Description

Part No.:	6Y2801
Description:	Grader End Bits
Applied Machine:	Motor Grader
Material:	Heat treated Boron steel (30MnB)
Hardness:	HB400-450
Measurement:
Weight:	7.5Kg
Length A :	462.4mm
Width B:	152mm
Thicknes C:	16mm

Bolt:	3/4'' plow bolt
Bolt Qty.:	5

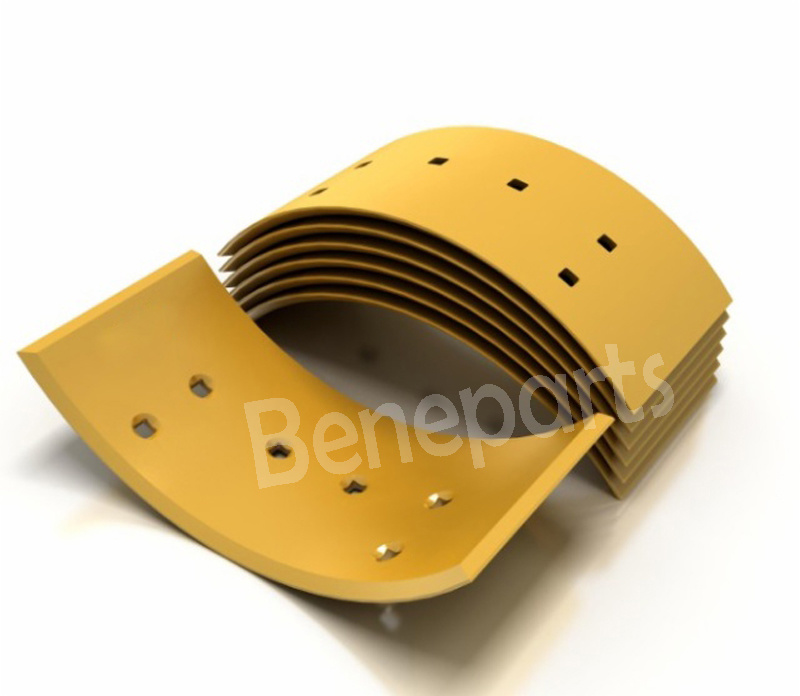

2. Our products range:
Grader 6y2801 for Construction Side Blade

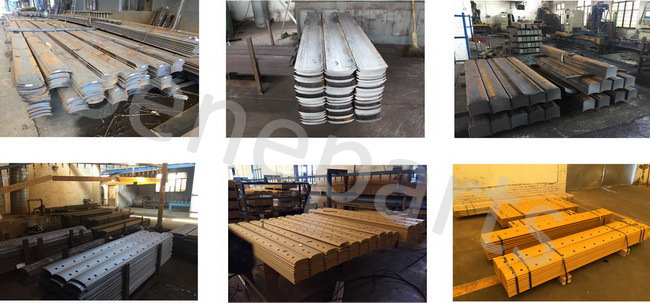

3. Production line:
Grader 6y2801 for Construction Side Blade

4. Popular items blow for reference:

Part Number	Measurement (mm)	Description	Brand	Weight(Kgs)
238-70-12220	1524mmX152mmX16mm 5/8"X11	DBC Grader Blades		25
234-70-12192	2133mmX152mmX13mm 5/8"X9	DBC Grader Blades		28
232-70-12140	1828mmX152mmX13mm 5/8"X8	DBC Grader Blades		24
233-70-12141	1524mmX152mmX13mm 5/8"X7	DBC Grader Blades		20
4T2236	2438mmX203mmX25mm 3/4"X17	DBC Grader Blades		90
4T2233	2133mmX203mmX25mm 3/4"X15	DBC Grader Blades		79
4T2231	1828mmX203mmX25mm 3/4"X13	DBC Grader Blades		68
4T3511	1524mmX203mmX25mm 3/4"X11	DBC Grader Blades		56.5
109-3150	1219mmX203mmX25mm 3/4"X9	DBC Grader Blades		45
4T2237	2438mmX203mmX25mm 5/8"X17	DBC Grader Blades		90
4T2242	2133mmX203mmX25mm 5/8"X15	DBC Grader Blades		79
4T2244	1828mmX203mmX25mm 5/8"X13	DBC Grader Blades		68
4T2240	1524mmX203mmX25mm 5/8"X11	DBC Grader Blades		56.5
7D1949	2438mmX203mmX19mm 3/4"X17	DBC Grader Blades		67
7D1577	2133mmX203mmX19mm 3/4"X15	DBC Grader Blades		59
7D1576	1828mmX203mmX19mm 3/4"X13	DBC Grader Blades		50
4Z8131	1524mmX203mmX19mm 3/4"X11	DBC Grader Blades		42
109-3124	1219mmX203mmX19mm 3/4"X9	DBC Grader Blades		33.5
5D9732	2438mmX203mmX19mm 5/8"X17	DBC Grader Blades		67
5D9559	2133mmX203mmX19mm 5/8"X15	DBC Grader Blades		59

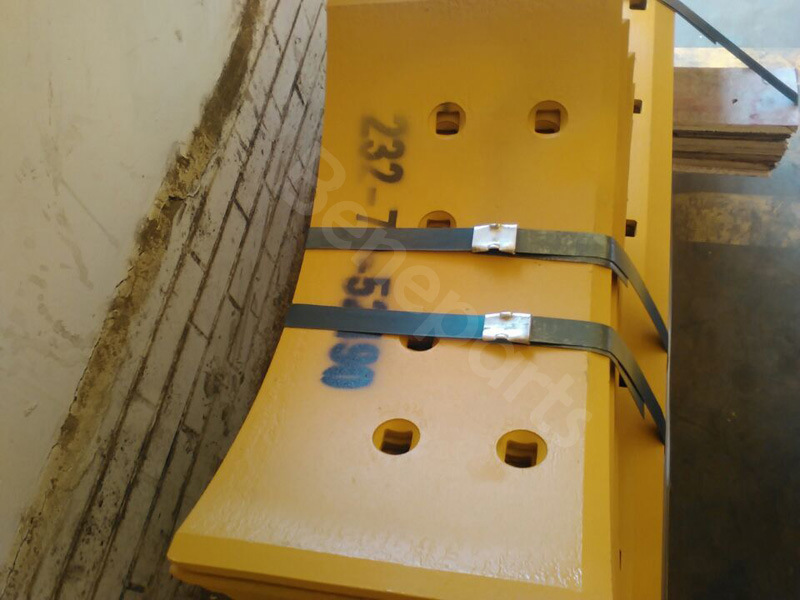

5. Our warehouse:

6.Company information

Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
