Product Category

Application

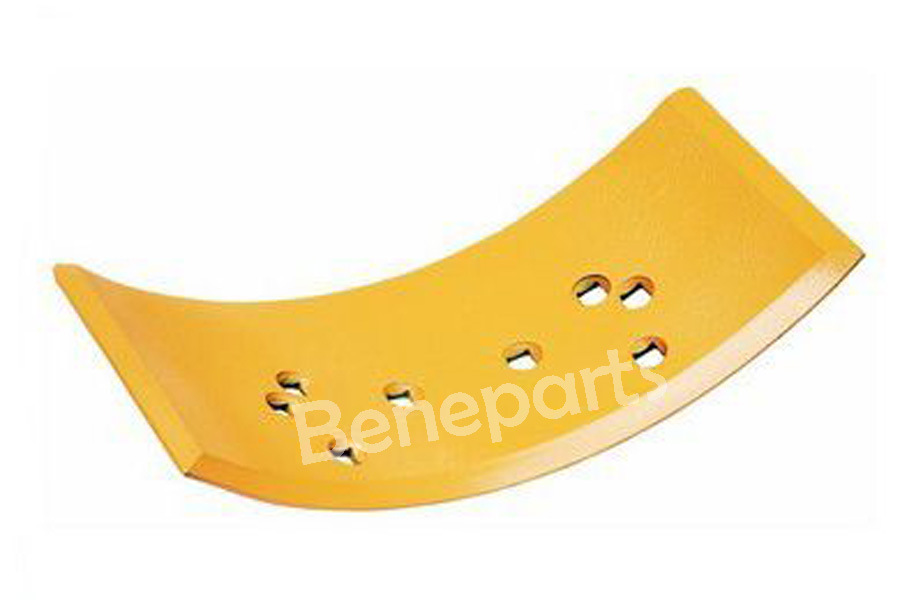

Curved Grader Blade End Bit 6D1904

Quantity:
Availability:





Inquire Add to Basket

Shape:
Curved
Transport Package:
According to Customer Requirements
Specification:
458.5mmX232mmX13mm 5/8"X8

Product Description

1. Description

Part No.:	6D1904
Description:	Overlay / Curved edge
Applied Machine:	Motor Grader
Material:	Heat treated Boron steel (30MnB)
Hardness:	HB400-450
Measurement:
Weight:	9.6Kg
Length A :	458.5mm
Width B:	232mm
Thicknes C:	13mm

Bolt:	5/8'' plow bolt
Bolt Qty.:	8

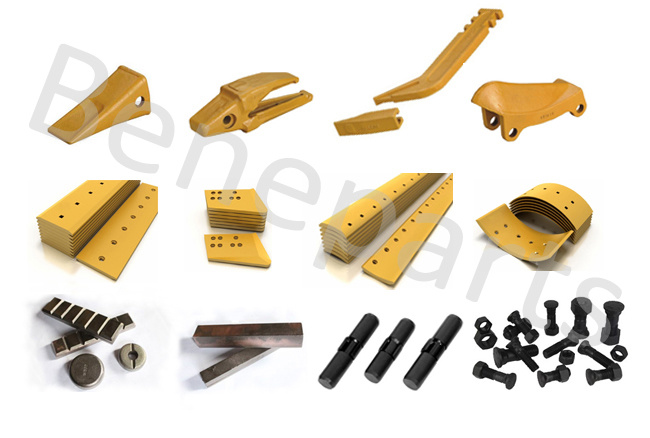

2. Our products range:
Curved Grader Blade End Bit 6D1904

3. Production line:
Curved Grader Blade End Bit 6D1904

4. Popular items blow for reference:

Part Number	Measurement (mm)	Description	Weight(Kgs)
232-2142	431.80mmX236.22mm	Grader End Bits	9.2
234-70-12233	523.8228.613 6*5/8"	Grader End Bits	10.6
6Y2803	481.6mmX152mmX19mm 3/4"X5	Grader End Bits	9.5
6Y2801	462.4mmX152mmX16mm 3/4"X5	Grader End Bits	7.5
232-70-52191	600mmX229mmX13mm 5/8"X6	Grader End Bits	13
234-70-32230	500.6mmX203mmX19mm 3/4"X6	Grader End Bits	14
232-70-52180	463.6mmX156mmX16mm 5/8"X5	Grader End Bits	9
234-70-32240	607.8mmX280mmX13mm 3/4"X6	Grader End Bits	16
232-70-52190	482.5mmX229mmX13mm 5/8"X6	Grader End Bits	10.5
232-70-12160	420mmX234mmX13mm 5/8"X5	Grader End Bits	8.4
232-70-12150	420mmX234mmX13mm 5/8"X5	Grader End Bits	8.4
9W1768	553.7mmX235mmX13mm 5/8"X8	Grader End Bits	12
9J4406	482mmX152mmX16mm 3/4"X4	Grader End Bits	8.2
9J4405	482mmX152mmX16mm 3/4"X4	Grader End Bits	8.2
9W1767	450mmX230mmX13mm 5/8"X8	Grader End Bits	9.4
6D1948	550mmX229mmX13mm 5/8"X8	Grader End Bits	11.5
6D1904	458.5mmX232mmX13mm 5/8"X8	Grader End Bits	9.6
7D2052	464.2mmX152mmX13mm 5/8"X5	Grader End Bits	6.5
8E5531	462.4mmX152mmX16mm 5/8"X5	Grader End Bits	7.5
8E5530	481.6mmX152mmX19mm 3/4"X5	Grader End Bits	9.5
8E5529	462.4mmX152mmX16mm 3/4"X5	Grader End Bits	7.5
6Y2805	552.9mmX235mmX13mm 3/4"X8	Grader End Bits	12.1
7D9999	592.7mmX235mmX13mm 3/4"X8	Grader End Bits	12.8

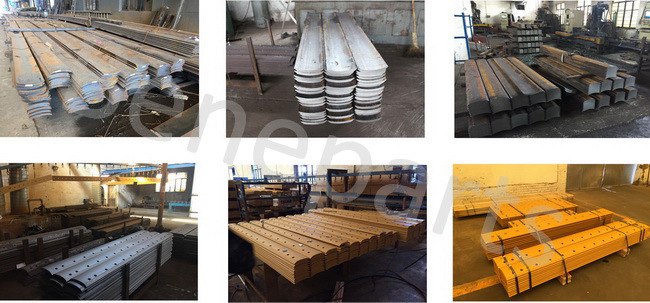

5. Our warehouse:

6.Company information
Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
