Chocky Bars CB100 Wear Parts

Caterpillar and other identities and/or trademarks referred to in this website are the registered marks of the entities noted herein. The use of any trademarks of others than Beneparts. are solely and exclusively for identification, informational, comparative, and descriptive purposes. Beneparts is not affiliated with any owner of such registered marks and
does not make, use, or sell any products manufactured by any such entity identified in this publication.

Quantity:
Availability:





Inquire Add to Basket

Model:
CB100
Brand:
ESCO
Code:
8474900000
Part No.:
CB100
Decription:
chocky bar
Specification:
240x100x(15+8=23)
Weight:
4.4 kg
Material 1:
white iron and mild steel
Material 2:
Cr15Mo3
Average Lead Time:
stock
Application:
Excavator
Application 2:
Loader
Working Condition:
mining
Working Condition 2:
construction
Color:
Green
Manufacturing Process:
casting
After-sales Service:
Yes
Stock:
check with BP
Hardness:
HB 700

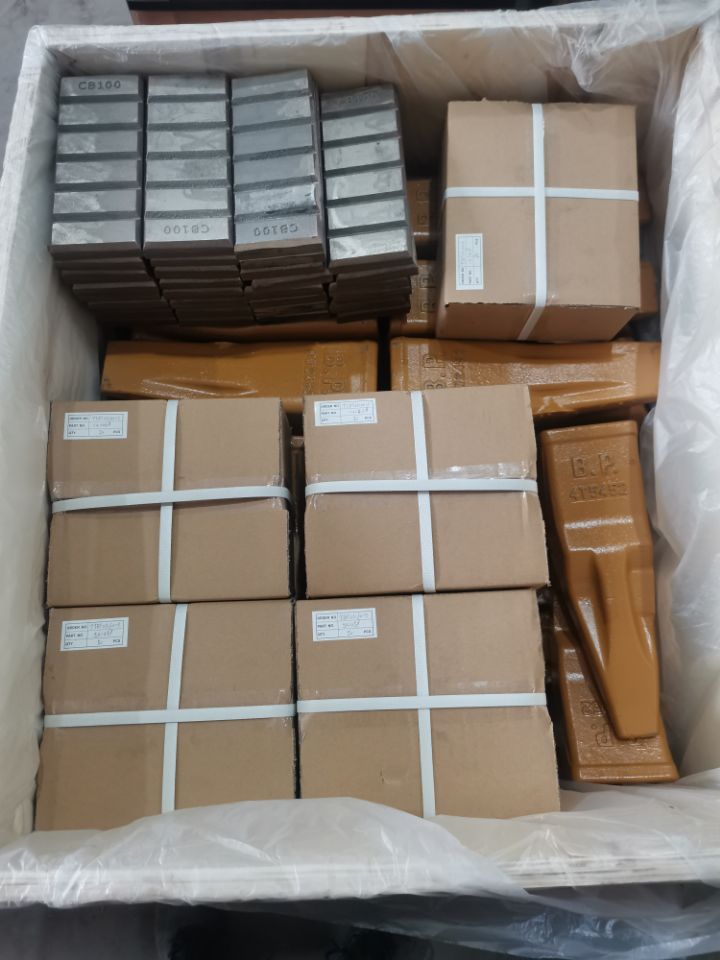

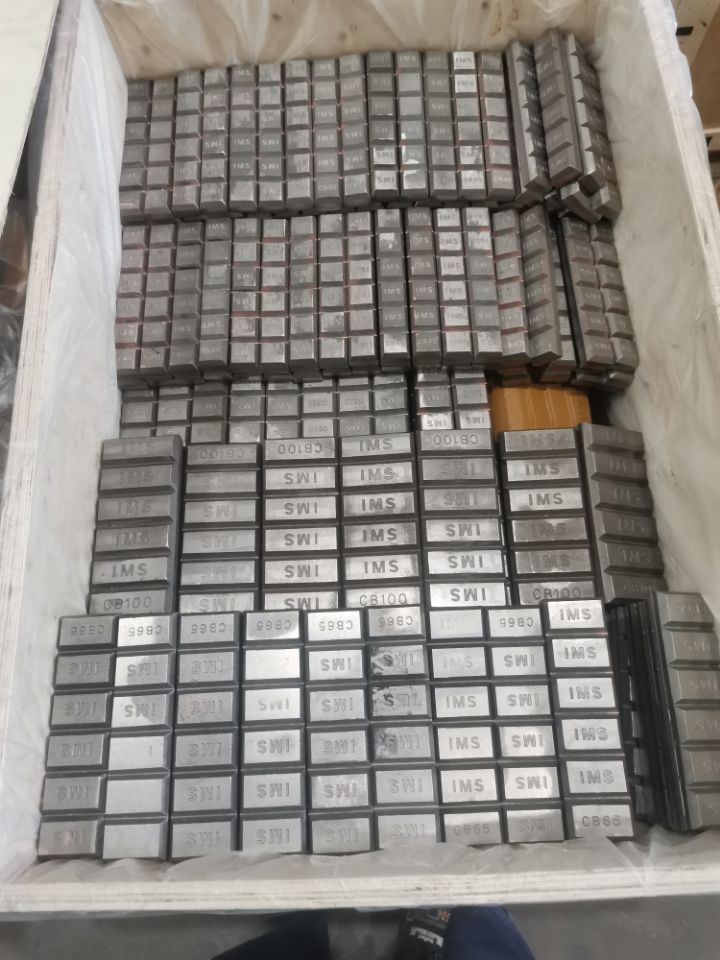

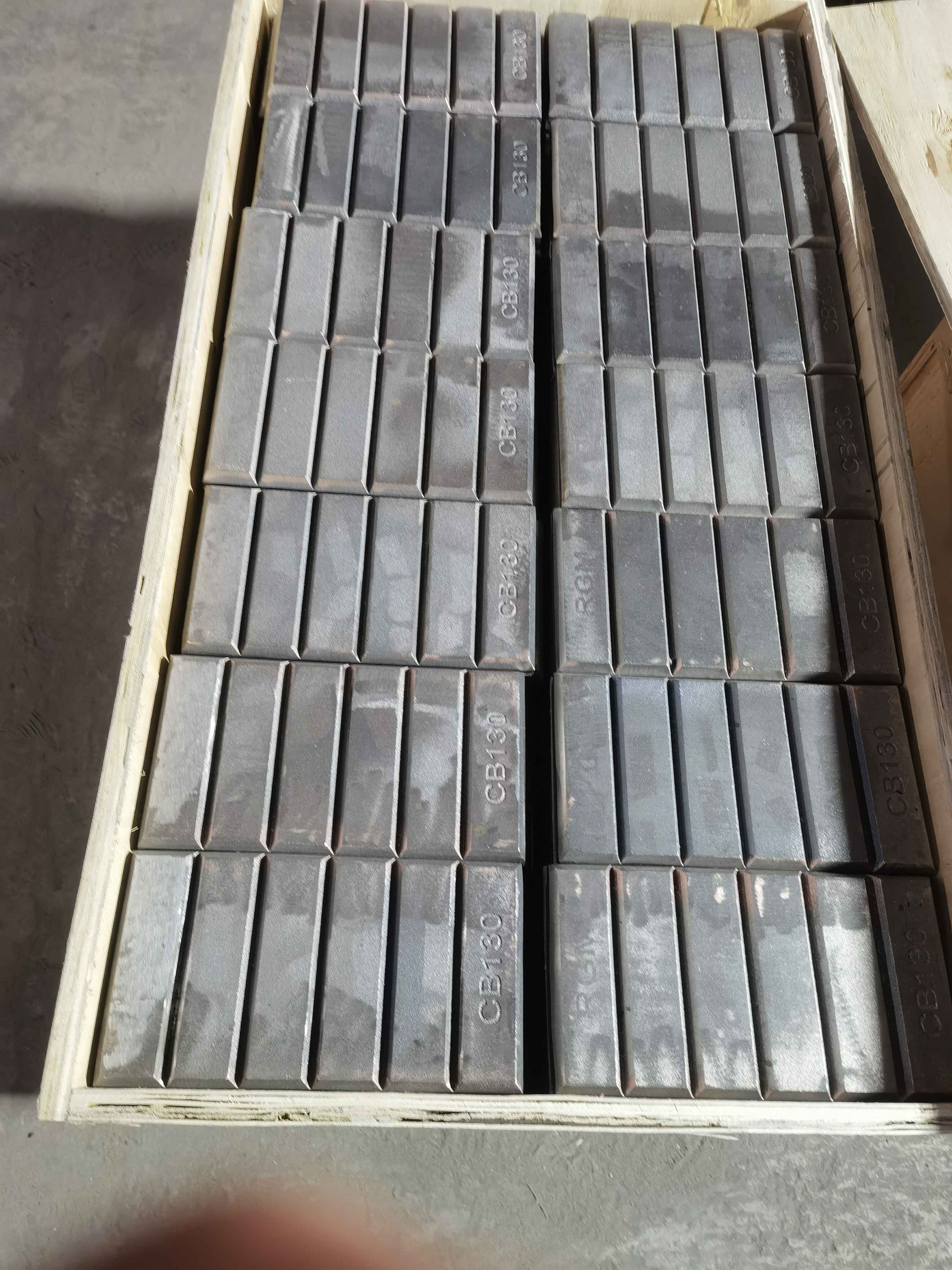

Package:
wooden boxes
Origin:
China
Warranty:
Yes

Product Description

1. Description:
Name:Chocky bars CB100
Measure: 240x100x(15+8=23)
Material: Cr white iron and mild steel
Hardness: HRC63, HB700

Easy to cut - allowing you to customize the protection to different specifications
Easy to bend - offers protection on a contoured surface.
Use chocky bars with pre-notched backing plate.
Available in 5 sizes - with either standard or pre-notched backing plate.

Applications:
Bucket wear strips.
Replaces hard facing for augers, directional drill heads, foundation drilling, raise bore drilling.
Fan blade liners.
Pug mill paddles, tip and scrapers.
Recycling industry.
Road planer skids and pick protectors.
Replaces hard facing for pump housings and impellors

2. Our products range:

3. Popular items blow for reference:
Mini Digger Attachments CB130-Awt Chocky Bar

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
CB25	240	25	15	8	23	0.9
CB40	240	40	15	8	23	1.5
CB50	240	50	15	8	23	1.9
CB65	240	65	15	8	23	2.5
CB90	240	90	15	8	23	4.2
CB100	240	100	15	8	23	4.4
CB130	240	130	15	8	23	5.2

Mini Digger Attachments CB130-Awt Chocky Bar

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
WB60	60	45	10	17	27	0.7
WB75	75	50	10	17	27	0.9
WB90	90	45	10	17	27	1.2
WB115	115	90	12	20	32	2.6
WB150	150	130	16	25	41	5.8

Mini Digger Attachments CB130-Awt Chocky Bar

Part No.	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)
DLP-1920	75	25	17	8	25	0.7
DLP-1921	100	50	17	8	25	1.1
DLP-1994	100	70	24	8	32	1
DLP-2196	130	80	15	8	23	1.3
DLP-4771	148	108	25	10	35	2.3
