| Quantity: | |
|---|---|
5D9559
Caterpillar
8431499900
5D-9559
120, 120G, 120H, 120H ES, 120H NA, 12F, 12G
DBC Grader Blades
59 kg
Boron steel
High carbon steel
hardox
20-30 days
Bulldozer
construction
mining
Yellow
Caterpillar
casting
Yes
check with BP
wooden boxes
China
Yes

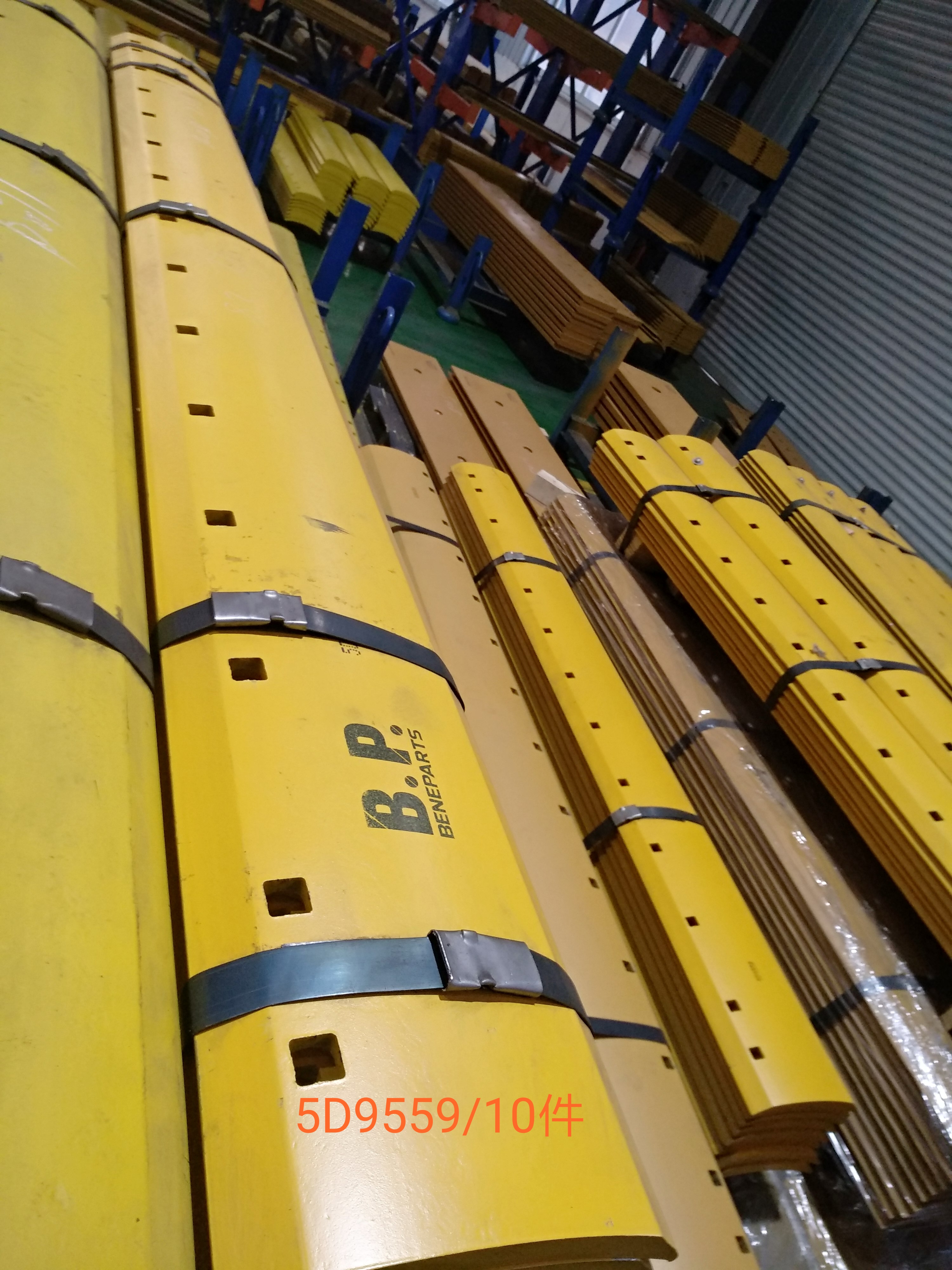

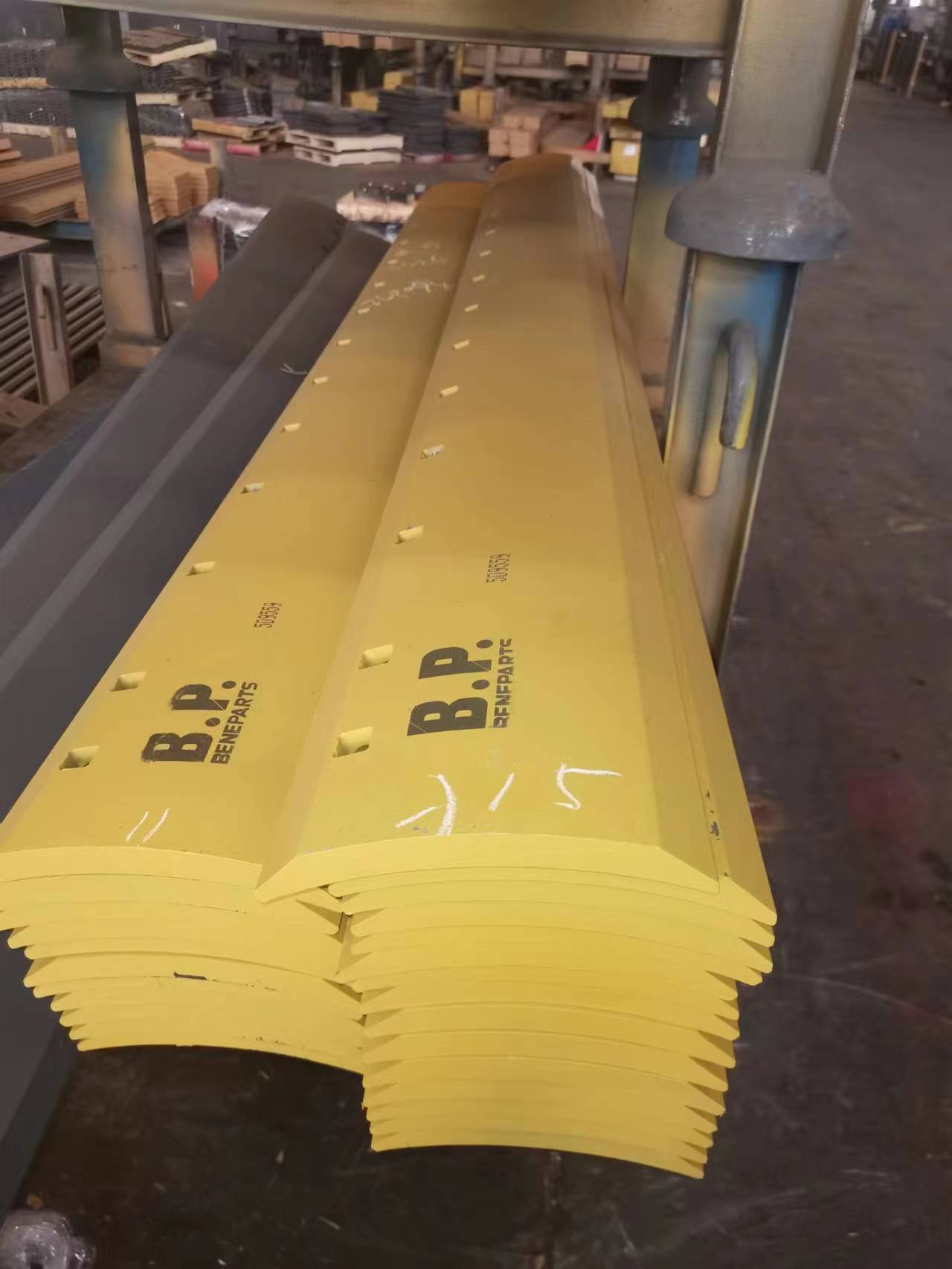

1. Description
| Part No.: | 5D9559 |
| Description: | Curved grader blade |
| Applied Machine: | Motor grader |
| Material: | High carbon steel, Heat treated boron steel (30MnB) |
| Measurement: | |
| Weight: | 59Kg |
| Width: | 203mm |
| Thickness: | 19mm |
| Length: | 2133mm |
| Bolt: | 5/8'' plow bolt |
| Bolt Qty.: | 15 |
2. Our products range:
3. Production line:
4. Popular items blow for reference:
| Part Number | Measurement (mm) | Description | Weight(Kgs) | |
| 232-70-12142 | 1828mmX152mmX13mm 5/8"X8 | DBC Grader Blades | 24 | |
| 4T3512 | 1219mmX203mmX25mm 3/4"X9 | DBC Grader Blades | 45 | |
| 7T1627 | 2438mmX203mmX19mm 3/4"X17 | DBC Grader Blades | 67 | |
| 7T1625 | 2133mmX203mmX19mm 3/4"X15 | DBC Grader Blades | 59 | |
| 7T1638 | 1828mmX203mmX19mm 3/4"X13 | DBC Grader Blades | 50 | |
| 9W2341 | 1524mmX203mmX19mm 3/4"X11 | DBC Grader Blades | 42 | |
| 9W2339 | 1219mmX203mmX19mm 3/4"X9 | DBC Grader Blades | 33.5 | |
| 7T1630 | 2438mmX203mmX19mm 5/8"X17 | DBC Grader Blades | 67 | |
| 7T1623 | 2133mmX203mmX19mm 5/8"X15 | DBC Grader Blades | 59 | |
| 7T1634 | 1828mmX203mmX19mm 5/8"X13 | DBC Grader Blades | 50 | |
| 9W2340 | 1524mmX203mmX19mm 5/8"X11 | DBC Grader Blades | 42 | |
| 9W2338 | 1219mmX203mmX19mm 5/8"X9 | DBC Grader Blades | 33.5 | |
| 7T1628 | 2438mmX203mmX16mm 3/4"X17 | DBC Grader Blades | 56 | |
| 7T1624 | 2133mmX203mmX16mm 3/4"X15 | DBC Grader Blades | 49 | |
| 7T1639 | 1828mmX203mmX16mm 3/4"X13 | DBC Grader Blades | 42 | |
| 9W2329 | 1219mmX203mmX16mm 3/4"X9 | DBC Grader Blades | 28 | |
| 7T1631 | 2438mmX203mmX16mm 5/8"X17 | DBC Grader Blades | 56 | |
| 7T1643 | 2133mmX203mmX16mm 5/8"X15 | DBC Grader Blades | 49 | |
| 7T1636 | 1828mmX203mmX16mm 5/8"X13 | DBC Grader Blades | 42 |
1. Description
| Part No.: | 5D9559 |
| Description: | Curved grader blade |
| Applied Machine: | Motor grader |
| Material: | High carbon steel, Heat treated boron steel (30MnB) |
| Measurement: | |
| Weight: | 59Kg |
| Width: | 203mm |
| Thickness: | 19mm |
| Length: | 2133mm |
| Bolt: | 5/8'' plow bolt |
| Bolt Qty.: | 15 |
2. Our products range:
3. Production line:
4. Popular items blow for reference:
| Part Number | Measurement (mm) | Description | Weight(Kgs) | |
| 232-70-12142 | 1828mmX152mmX13mm 5/8"X8 | DBC Grader Blades | 24 | |
| 4T3512 | 1219mmX203mmX25mm 3/4"X9 | DBC Grader Blades | 45 | |
| 7T1627 | 2438mmX203mmX19mm 3/4"X17 | DBC Grader Blades | 67 | |
| 7T1625 | 2133mmX203mmX19mm 3/4"X15 | DBC Grader Blades | 59 | |
| 7T1638 | 1828mmX203mmX19mm 3/4"X13 | DBC Grader Blades | 50 | |
| 9W2341 | 1524mmX203mmX19mm 3/4"X11 | DBC Grader Blades | 42 | |
| 9W2339 | 1219mmX203mmX19mm 3/4"X9 | DBC Grader Blades | 33.5 | |
| 7T1630 | 2438mmX203mmX19mm 5/8"X17 | DBC Grader Blades | 67 | |
| 7T1623 | 2133mmX203mmX19mm 5/8"X15 | DBC Grader Blades | 59 | |
| 7T1634 | 1828mmX203mmX19mm 5/8"X13 | DBC Grader Blades | 50 | |
| 9W2340 | 1524mmX203mmX19mm 5/8"X11 | DBC Grader Blades | 42 | |
| 9W2338 | 1219mmX203mmX19mm 5/8"X9 | DBC Grader Blades | 33.5 | |
| 7T1628 | 2438mmX203mmX16mm 3/4"X17 | DBC Grader Blades | 56 | |
| 7T1624 | 2133mmX203mmX16mm 3/4"X15 | DBC Grader Blades | 49 | |
| 7T1639 | 1828mmX203mmX16mm 3/4"X13 | DBC Grader Blades | 42 | |
| 9W2329 | 1219mmX203mmX16mm 3/4"X9 | DBC Grader Blades | 28 | |
| 7T1631 | 2438mmX203mmX16mm 5/8"X17 | DBC Grader Blades | 56 | |
| 7T1643 | 2133mmX203mmX16mm 5/8"X15 | DBC Grader Blades | 49 | |
| 7T1636 | 1828mmX203mmX16mm 5/8"X13 | DBC Grader Blades | 42 |
