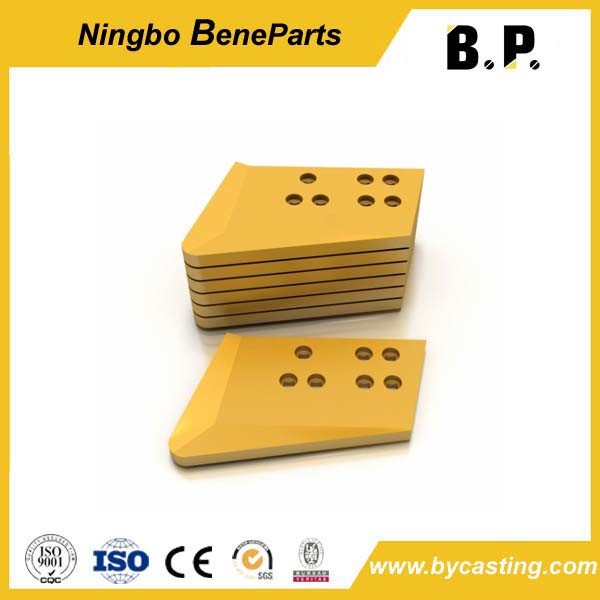

Bulldozer 9W9017 Bolt on End Bit

Quantity:
Availability:





Inquire Add to Basket

Technology:
Casting

Product Description

1. Description

Part No.:	9W9017
Description:	HC Dozer end bit
Applied Machine:	bulldozer
Model.:
Material:	Heat treated Boron steel (30MnB)
Hardness:	HB400-450
Measurement:
Weight:	10.6Kg
Length A :	349.3mm
Width B:	203mm
Thicknes C:	16mm

Bolt:	5/8'' plow bolt
Bolt Qty.:	6

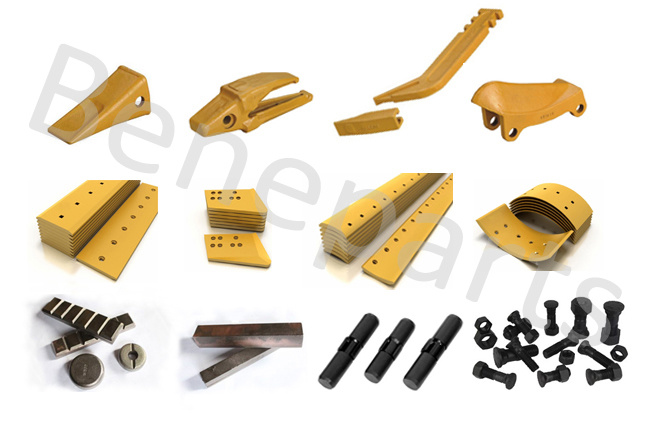

2. Our products range:
Bulldozer 9W9017 Bolt on End Bit

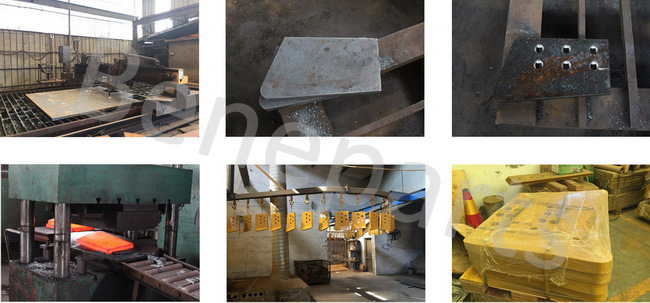

3. Production line:
Bulldozer 9W9017 Bolt on End Bit

4. Popular items blow for reference:

Part Number	Measurement (mm)	Description	Weight(Kgs)
8E4542HD60	722mmX406mmX60mm 1-1/4"X7	Dozer End Bit	126
8E4541HD60	722mmX406mmX60mm 1-1/4"X7	Dozer End Bit	126
175-71-11182	630mmX315mmX35mm 7/8"X7	Dozer End Bit	46
175-71-11172	630mmX315mmX35mm 7/8"X7	Dozer End Bit	46
8J6412	330mmX165mmX16mm 5/8"X3	Dozer End Bit	6
9W9012	381mmX203mmX19mm 5/8"X6	Dozer End Bit	10.9
9W9013	381mmX203mmX19mm 5/8"X6	Dozer End Bit	10.9
9W9016	349.3mmX203mmX16mm 5/8"X6	Dozer End Bit	10.6
9W9017	349.3mmX203mmX16mm 5/8"X6	Dozer End Bit	10.6
6J0896	402mmX203mmX25mm 3/4"X6	Dozer End Bit	14.6
6J0895	402mmX203mmX25mm 3/4"X6	Dozer End Bit	14.6
6J0894	402mmX203mmX25mm 5/8"X6	Dozer End Bit	14.6
6J0893	402mmX203mmX25mm 5/8"X6	Dozer End Bit	14.6
4J5012	374mmX203mmX25mm 3/4"X6	Dozer End Bit	15
4J5011	374mmX203mmX25mm 3/4"X6	Dozer End Bit	15
8J7163	377.2mmX203mmX19mm 3/4"X6	Dozer End Bit	9.7
8J7162	377.2mmX203mmX19mm 3/4"X6	Dozer End Bit	9.7
6J0278	431mmX203mmX25mm 5/8"X6	Dozer End Bit	16.8
6J0277	431mmX203mmX25mm 5/8"X6	Dozer End Bit	16.8
6J0276	431mmX203mmX25mm 3/4"X6	Dozer End Bit	16.8
6J0275	431mmX203mmX25mm 3/4"X6	Dozer End Bit	16.8
6J8922	388.9mmX254mmX25mm 7/8"X7	Dozer End Bit	16.1
6J8921	388.9mmX254mmX25mm 7/8"X7	Dozer End Bit	16.1
5J6922	419.1mmX254mmX25mm 3/4"X7	Dozer End Bit	17.8
5J6921	419.1mmX254mmX25mm 3/4"X7	Dozer End Bit	17.8
1J9494	468.4mmX254mmX30mm 7/8"X7	Dozer End Bit	26
1J9493	468.4mmX254mmX30mm 7/8"X7	Dozer End Bit	26
5J6930	407.9mmX254mmX25mm 3/4"X7	Dozer End Bit	18
5J6929	407.9mmX254mmX25mm 3/4"X7	Dozer End Bit	18
8J8116	493mmX260mmX30mm 1"X7	Dozer End Bit	29
8J8117	493mmX260mmX30mm 1"X7	Dozer End Bit	29
9J1472	504mmX254mmX40mm 1"X7	Dozer End Bit	35.2
9J1473	504mmX254mmX40mm 1"X7	Dozer End Bit	35.2
7J3460	504mmX254mmX40mm 7/8"X7	Dozer End Bit	38.2
7J3459	504mmX254mmX40mm 7/8"X7	Dozer End Bit	38.2
2J2572	490mmX254mmX30mm 7/8"X7	Dozer End Bit	27
2J2571	490mmX254mmX30mm 7/8"X7	Dozer End Bit	27
1U4184	487mmX254mmX30mm 1"X7	Dozer End Bit	23.9
1U4183	487mmX254mmX30mm 1"X7	Dozer End Bit	23.9
8J8120	531mmX254mmX30mm 1"X7	Dozer End Bit	28
8J8105	531mmX254mmX30mm 1"X7	Dozer End Bit	28
5J8768	531mmX254mmX30mm 7/8"X7	Dozer End Bit	28
5J8767	531mmX254mmX30mm 7/8"X7	Dozer End Bit	28
5J9628	531mmX254mmX25mm 7/8"X7	Dozer End Bit	25
5J9627	531mmX254mmX25mm 7/8"X7	Dozer End Bit	25
9J1474	531mmX254mmX40mm 1"X7	Dozer End Bit	39.3
9J1475	531mmX254mmX40mm 1"X7	Dozer End Bit	39.3
7J3458	531mmX254mmX40mm 7/8"X7	Dozer End Bit	37.4
7J3457	531mmX254mmX40mm 7/8"X7	Dozer End Bit	37.4
1U0181	409.1mmX254mmX25mm 7/8"X7	Dozer End Bit	18.1

5. Our warehouse:

6.Company information

Ningbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc..

Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.

Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.

Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
