| Quantity: | |
|---|---|
86577169
case
8431499900
86577169
Cutting Edge
1828mm*203mm*19mm
53.4 kg
Boron steel
hardox
20-30 days
Bulldozer
construction
mining
Yellow
Caterpillar
casting
Yes
check with BP
wooden boxes
China
Yes

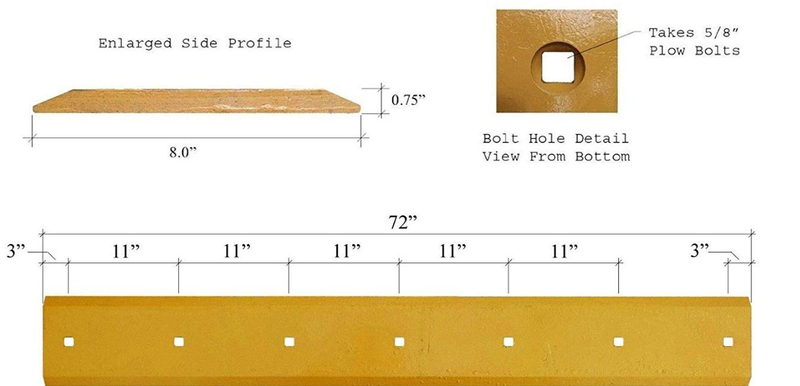

1. Description
| Part No.: | 86577169 |
| Description: | cutting edge |
| Applied Machine: | loader |
| Model.: | |
| Material: | Carbon steel, Boron steel (30MnB) |
| Hardness: | HB300-350, HB440-480 |
| Measurement: | |
| Weight: | 53.4Kg |
| Width: | 203mm |
| Thickness: | 19mm |
| Length: | 1828mm |
| Bolt: | 5/8" plow bolt |
| Bolt Qty.: | 7 |
2. Our products range:
3. Our production line:
4. Popular items blow for reference:
| Part Number | Measurement (mm) | Description | Weight(Kgs) | |
| 232-2142 | 431.80mmX236.22mm | Grader End Bits | 9.2 | |
| 234-70-12233 | 523.8*228.6*13 6*5/8" | Grader End Bits | 10.6 | |
| 6Y2803 | 481.6mmX152mmX19mm 3/4"X5 | Grader End Bits | 9.5 | |
| 6Y2801 | 462.4mmX152mmX16mm 3/4"X5 | Grader End Bits | 7.5 | |
| 232-70-52191 | 600mmX229mmX13mm 5/8"X6 | Grader End Bits | 13 | |
| 234-70-32230 | 500.6mmX203mmX19mm 3/4"X6 | Grader End Bits | 14 | |
| 232-70-52180 | 463.6mmX156mmX16mm 5/8"X5 | Grader End Bits | 9 | |
| 234-70-32240 | 607.8mmX280mmX13mm 3/4"X6 | Grader End Bits | 16 | |
| 232-70-52190 | 482.5mmX229mmX13mm 5/8"X6 | Grader End Bits | 10.5 | |
| 232-70-12160 | 420mmX234mmX13mm 5/8"X5 | Grader End Bits | 8.4 | |
| 232-70-12150 | 420mmX234mmX13mm 5/8"X5 | Grader End Bits | 8.4 | |
| 9W1768 | 553.7mmX235mmX13mm 5/8"X8 | Grader End Bits | 12 | |
| 9J4406 | 482mmX152mmX16mm 3/4"X4 | Grader End Bits | 8.2 | |
| 9J4405 | 482mmX152mmX16mm 3/4"X4 | Grader End Bits | 8.2 | |
| 9W1767 | 450mmX230mmX13mm 5/8"X8 | Grader End Bits | 9.4 | |
| 6D1948 | 550mmX229mmX13mm 5/8"X8 | Grader End Bits | 11.5 | |
| 6D1904 | 458.5mmX232mmX13mm 5/8"X8 | Grader End Bits | 9.6 | |
| 7D2052 | 464.2mmX152mmX13mm 5/8"X5 | Grader End Bits | 6.5 | |
| 8E5531 | 462.4mmX152mmX16mm 5/8"X5 | Grader End Bits | 7.5 | |
| 8E5530 | 481.6mmX152mmX19mm 3/4"X5 | Grader End Bits | 9.5 | |
| 8E5529 | 462.4mmX152mmX16mm 3/4"X5 | Grader End Bits | 7.5 | |
| 6Y2805 | 552.9mmX235mmX13mm 3/4"X8 | Grader End Bits | 12.1 | |
| 7D9999 | 592.7mmX235mmX13mm 3/4"X8 | Grader End Bits | 12.8 |
5. Our warehouse:
1. Description
| Part No.: | 86577169 |
| Description: | cutting edge |
| Applied Machine: | loader |
| Model.: | |
| Material: | Carbon steel, Boron steel (30MnB) |
| Hardness: | HB300-350, HB440-480 |
| Measurement: | |
| Weight: | 53.4Kg |
| Width: | 203mm |
| Thickness: | 19mm |
| Length: | 1828mm |
| Bolt: | 5/8" plow bolt |
| Bolt Qty.: | 7 |
2. Our products range:
3. Our production line:
4. Popular items blow for reference:
| Part Number | Measurement (mm) | Description | Weight(Kgs) | |
| 232-2142 | 431.80mmX236.22mm | Grader End Bits | 9.2 | |
| 234-70-12233 | 523.8*228.6*13 6*5/8" | Grader End Bits | 10.6 | |
| 6Y2803 | 481.6mmX152mmX19mm 3/4"X5 | Grader End Bits | 9.5 | |
| 6Y2801 | 462.4mmX152mmX16mm 3/4"X5 | Grader End Bits | 7.5 | |
| 232-70-52191 | 600mmX229mmX13mm 5/8"X6 | Grader End Bits | 13 | |
| 234-70-32230 | 500.6mmX203mmX19mm 3/4"X6 | Grader End Bits | 14 | |
| 232-70-52180 | 463.6mmX156mmX16mm 5/8"X5 | Grader End Bits | 9 | |
| 234-70-32240 | 607.8mmX280mmX13mm 3/4"X6 | Grader End Bits | 16 | |
| 232-70-52190 | 482.5mmX229mmX13mm 5/8"X6 | Grader End Bits | 10.5 | |
| 232-70-12160 | 420mmX234mmX13mm 5/8"X5 | Grader End Bits | 8.4 | |
| 232-70-12150 | 420mmX234mmX13mm 5/8"X5 | Grader End Bits | 8.4 | |
| 9W1768 | 553.7mmX235mmX13mm 5/8"X8 | Grader End Bits | 12 | |
| 9J4406 | 482mmX152mmX16mm 3/4"X4 | Grader End Bits | 8.2 | |
| 9J4405 | 482mmX152mmX16mm 3/4"X4 | Grader End Bits | 8.2 | |
| 9W1767 | 450mmX230mmX13mm 5/8"X8 | Grader End Bits | 9.4 | |
| 6D1948 | 550mmX229mmX13mm 5/8"X8 | Grader End Bits | 11.5 | |
| 6D1904 | 458.5mmX232mmX13mm 5/8"X8 | Grader End Bits | 9.6 | |
| 7D2052 | 464.2mmX152mmX13mm 5/8"X5 | Grader End Bits | 6.5 | |
| 8E5531 | 462.4mmX152mmX16mm 5/8"X5 | Grader End Bits | 7.5 | |
| 8E5530 | 481.6mmX152mmX19mm 3/4"X5 | Grader End Bits | 9.5 | |
| 8E5529 | 462.4mmX152mmX16mm 3/4"X5 | Grader End Bits | 7.5 | |
| 6Y2805 | 552.9mmX235mmX13mm 3/4"X8 | Grader End Bits | 12.1 | |
| 7D9999 | 592.7mmX235mmX13mm 3/4"X8 | Grader End Bits | 12.8 |
5. Our warehouse:
